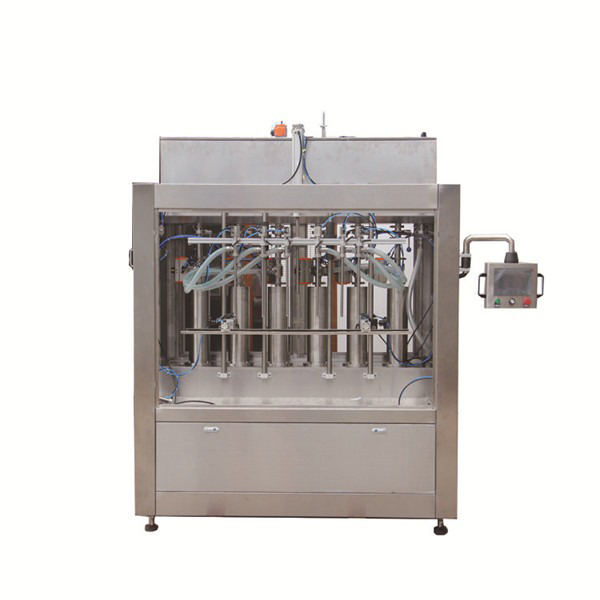

Riempitrice di liquidi per lavastoviglie

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

specificazioni

---

riempitrice per liquidi per lavastoviglie
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Descrizione

---

CE dell'UE
ISO9001
Soddisfa i requisiti di GMP
longlife of service, low mainteinance rate

Funzione principale

---

La macchina è una riempitrice avanzata di alta precisione che può completare automaticamente il processo di conteggio, riempimento e tappatura delle bottiglie.

Caratteristiche

1. Compatto strutturato, di bell'aspetto, facile da usare e altamente automatizzato.

2. i componenti a contatto con il materiale sono realizzati in acciaio inossidabile, facili da pulire.

3. Il volume di riempimento è controllato con valvole a film per garantire la precisione.

4. Le valvole di riempimento ad alta velocità e precisione assicurano l'assenza di perdite.

5. È dotato di un sistema di alimentazione del cappuccio altamente efficace.

Opzione lingua

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Caratteristiche principali:

---

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Può memorizzare molti parametri, utile per varie specifiche modificate, tutto il dosaggio di riempimento può essere regolato dal touch screen.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Parametro tecnico principale

---

Articolo	Nome	Parametro tecnico
01	Dimensione macchina (L * W * H)	2.200 millimetri * 1.400 millimetri * 2.800 millimetri
02	Peso della macchina	Circa 1400 kg
03	Diametro interno apertura contenitore	≥φ35mm
04	Contenitore adatto	1Liter .2Liter
05	Altezza del contenitore	80-350mm
06	Alimentazione elettrica	CA 380 V; 50 Hz
07	Energia	5kw
08	Precisione di riempimento	≤ ± 1%
09	Fonte di aria	0,6 MPa aria compressa stabile e pulita
11	Numero di ugelli di riempimento	13
12	Altezza del trasportatore	900 millimetri ± 50 millimetri
13	capacità	≤3200 bottiglie / ora (prendere l'acqua come test)
14	Bottiglia nella direzione di alimentazione	Da sinistra a destra

Info Veloci

---

Tipo: Riempitrice
Condizioni: Nuovo
Applicazione: Chemical
Tipo di imballo: Bottiglie
Materiale da imballaggio: legno
Grado automatico: automatico
Tipo guidato: pneumatico
Voltaggio: 220 V.
Potenza: 3 kW
Luogo di origine: Shanghai. Cina (continente)
Marchio: NPACK
Dimensioni (L * W * H): 2200mm * 1400mm * 2800mm
Peso: 1400
Certificazione: CE
Servizio post-vendita fornito: ingegneri disponibili per la manutenzione di macchinari all'estero
materiale: SS304
PLC: Panasonic
Touch screen: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
