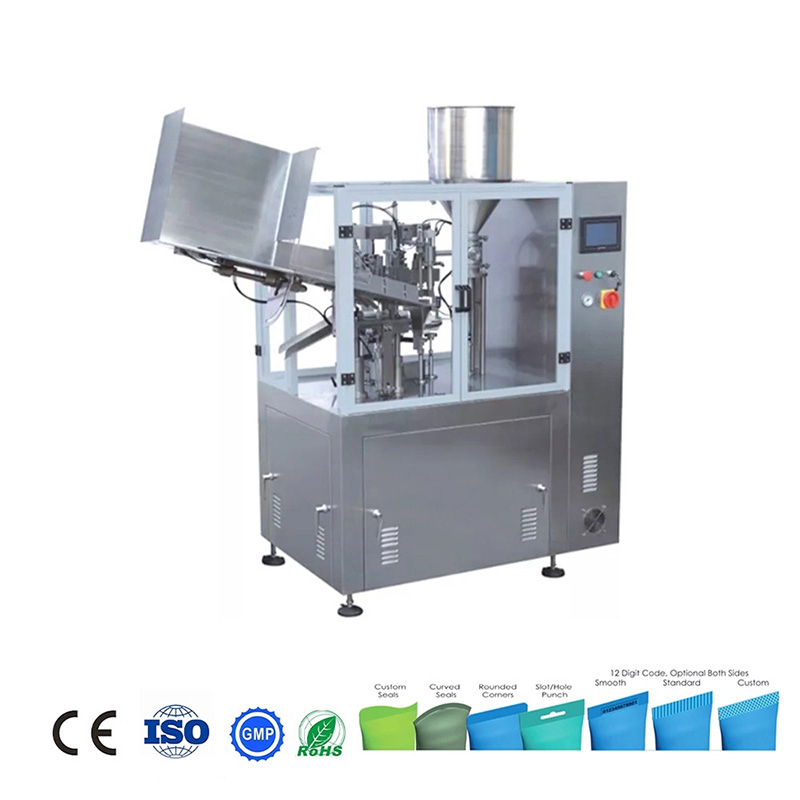

This machine is high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement, with features of fair structure, full function, easy operation, accurate filling, stable running, as well as low noise. It adopt with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries, comply with the standard of GMP.
1. High grade operation screen with LCD display PLC and buttons, easy operation and more humanization By steplees speed adjust, parameter set, out put count, pressure index and failure display.
2. Automatically executing tube supply, photoelectron register, inert gas filling(optional), material filling and sealing, batch number printing, final products output.
3. High precision photoelectron register reduced the chromatic aberration scope.
4. Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
5. Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; Waiting if tube error position or pressure too low, automatic stop machine if open the protective door.
|Modello||GF-400 A||GF-400 B|
|Tube material||Metal tube, ALU tube||Plastic tube, Compound tube|
|Tube diameter||10-42 mm||10-60 mm|
|Volume di riempimento||5-500ml/branch(Adjustable)||5-800ml/branch(Adjustable)|
|Precisione di riempimento||≤ ± 1%||≤ ± 1%|
|Velocità||3-10 r/min||2.5-7 r/min|
|Product capacity||30-60 Pc/min||30-60 Pc/min|
|Fornitura di aria||0.55-0.65mpa||0.55-0.65mpa|
|Motor Power||2kw(380V/ 220V 50Hz)||2kw(380V/ 220V 50Hz)|
|Heat sealing power||3KW||3KW|
|Overall dimension||2620×1020×1980 mm||2620×1020×1980 mm|
|Peso della macchina||1100 kg||1100 kg|
Forming Species: Bottle Forming
Tipo guidato: elettrico
Packaging: Soft Tube
Motor Power: 2kw(380V/ 220V 50Hz)
Overall Dimension: 2620×1020×1980mm
Origine: Shanghai, Cina
Grado automatico: automatico
Type: Filling and Sealing Machine
Forming Function: Filling
Material Type: Paste
Product Capacity: 30-60 PC/Min
Heat Sealing Power: 3kw
Machine Weight: 1100kg
